Activity 2: Practical Image Processing II

🕑05:19, 14 Aug 2019

Today’s activity involved the basics on digitally extracting values from hand-drawn plots. The image I used is shown in Fig. 1. For the pixel coordinate extraction, I used Photoshop, and for everything else, Python’s matplotlib module.

Radial profiles of the electron excitation emission

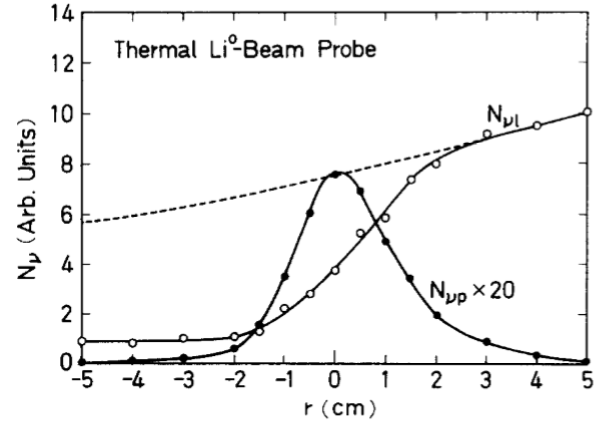

Figure 1: Radial profiles of the electron excitation emission and the laser-induced fluorescence for lithium resonance line (670.8 nm) [1].

In order to determine the pixel-to-centimeter conversion factor, I first tabulated the pixel coordinates of the x and y-axis units. I noticed that the ticks were not equidistant, and that the x and y axes were not of the same scale, so I performed linear regression by plotting the pixel vs cm values separately for both axes. The calibration curves can then be obtained from Fig. 2. The conversion factors obtained were:

Using these conversion factors, it’s simply a matter of plugging in pixel values into (1) or (2) in order to extract the real cm units. In Fig. 1, we can see three elements: a bell curve, a sigmoid-like curve, and an apparently straight line (it actually curves ever so slightly upward). To extract the values of the bell curve, I simply took the pixel location of the center of the round markers. For the sigmoid, I sampled at points on the line immediately adjacent to the hollow markers. For the dashed line, I sampled at each x-axis unit.

Calibration curves for the x and y axes

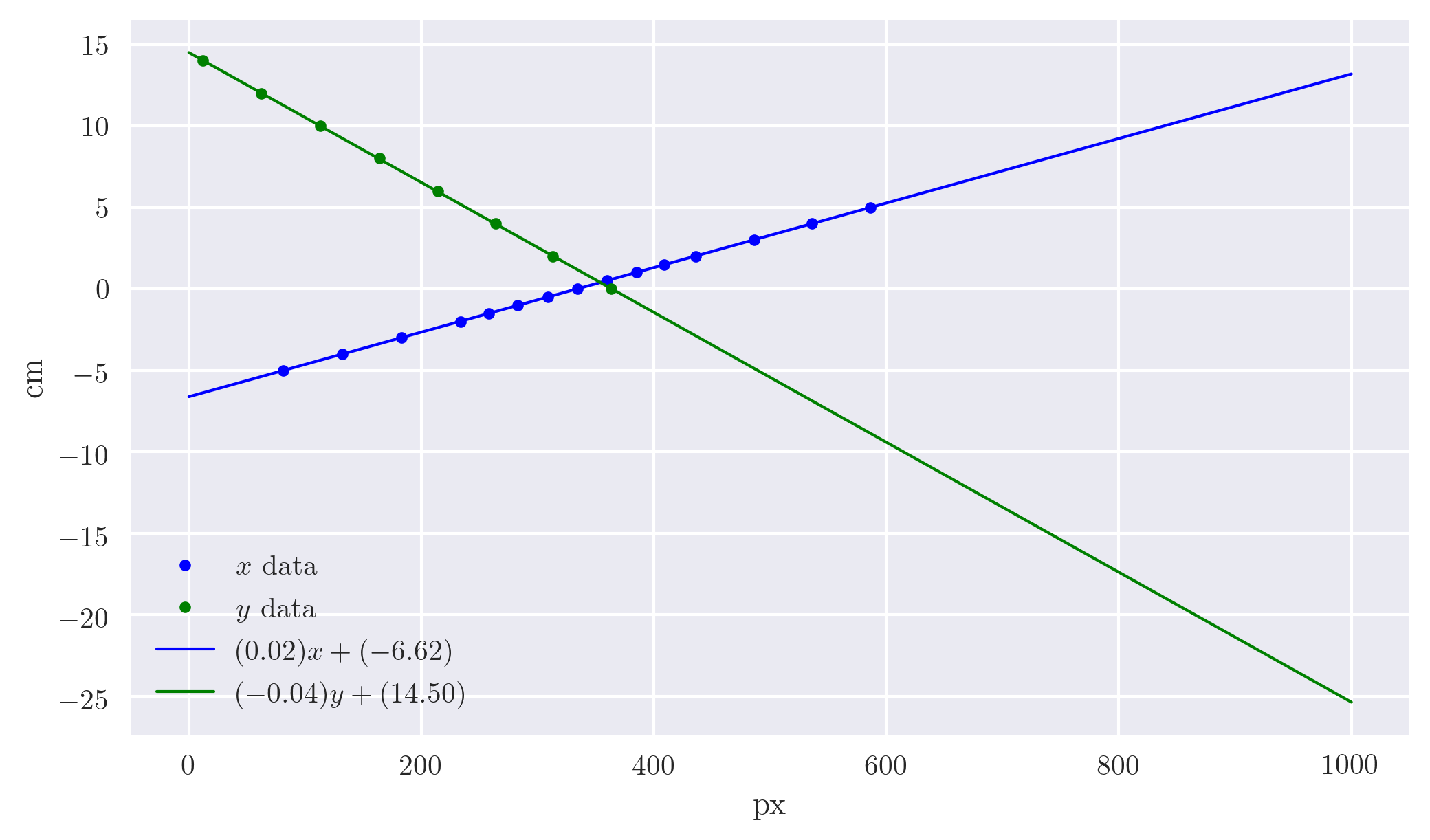

Figure 2: Calibration curves for the x and y axes.

After performing the necessary conversions, I could then plot my extracted curves while overlaying original image all in one go. Because matplotlib’s imshow function displays images in terms of pixels, I had to specify its extent and aspect parameters. To do this, I have to determine the length and width of the image as a whole, i.e., I have to extend the axes of the original plot so that it encompasses the image as a whole. This task is already trivial since I have already calculated conversion factors earlier. The end product is shown in Fig. 3.

Original image overlayed with the extracted curves

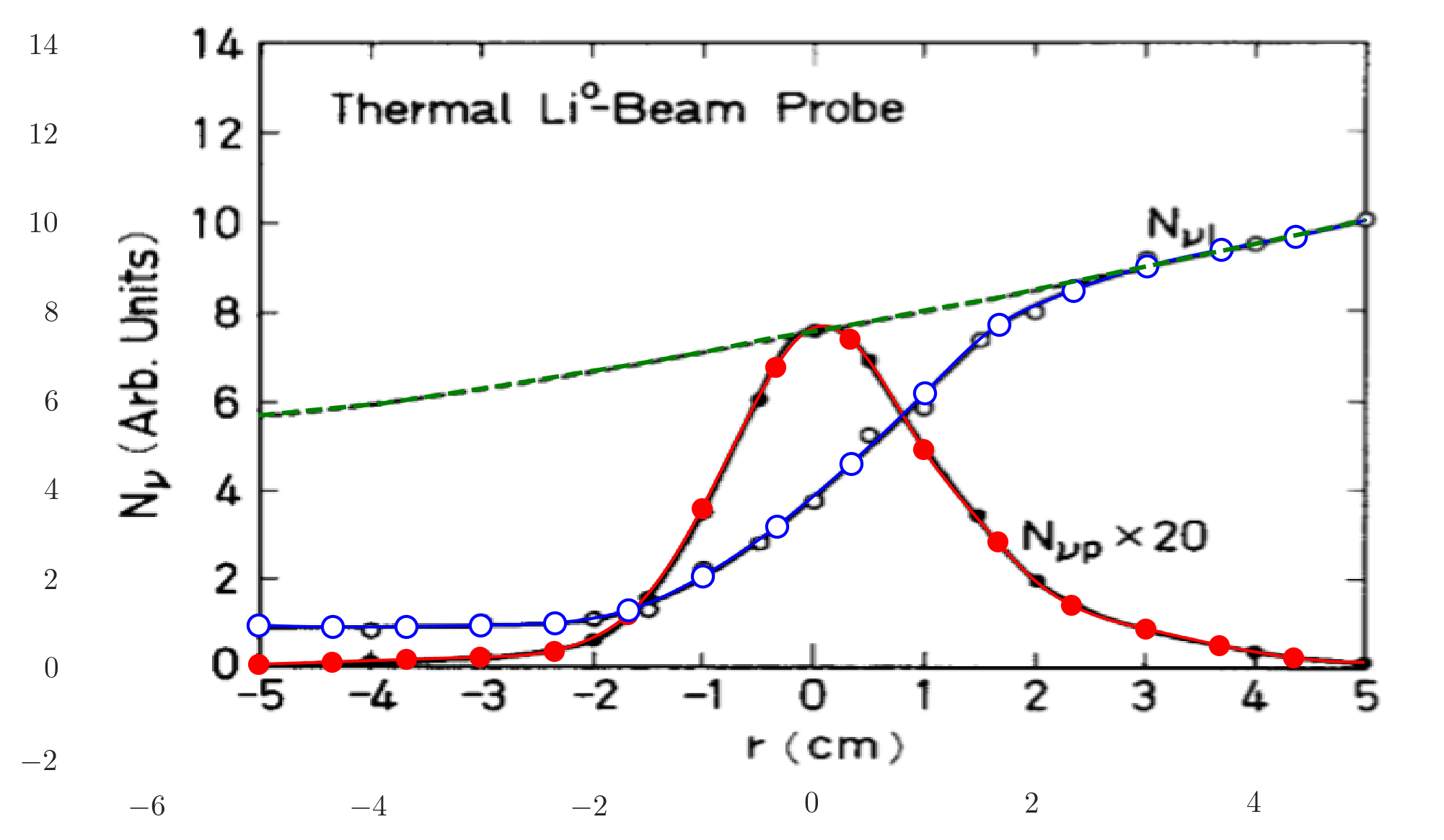

Figure 3: Original image overlayed with the extracted curves.

Even though it was suggested to use Paint, GIMP, and/or a spreadsheet software, I opted to use Photoshop and matplotlib since I have been accustomed to using them and I believe I can work faster and more efficiently by using them. Personally, I find using Excel cumbersome and makalat tignan for data processing, and I am especially not fond of the appearance of its plots.
